Air Cutter

MUROMOTO AIR CUTTERS


Here is a wide range of "NILE" air cutters to help you achieve higher productivity and remarkable cost saving in cutting, squeezin
Equipped with different types of replaceable cutting blades, these air cutters can be versatile for various applications.

g, pressing, bending and punching jobs for modern industries.





View More Details







  • MR3 (minimum size)
  • MR5 (extra small size)
  • MR10 (small size)
  • MR20 (medium size)
  • MR30A (large size)
  • MR50AK (extra large size)
  • MR50FK (extra large size for plastic cutting)
  • MP25A (medium size) (heavy-duty type)
  • MP35A (large size) (heavy-duty type)
  • MP55AK (extra large size) (heavy-duty type)



AIR CUTTERS SMR3
Length:112mm Weight:90g Grip size:φ20mm
Air consumption:31cm³/stroke Power:(approx.)265N
Air pressure:0.4~0.5MPa
Cutting capacity: steel-wire φ0.4mm, copper-wire φ0.8mm, piano-wire φ0.2mm, soft-plastic φ1mm

AIR CUTTERS MR5
Length:104mm Weight:130g Grip size:φ30mm
Air consumption:41cm³/stroke Power:(approx.)390N
Air pressure:0.4~0.5MPa
Cutting capacity: steel-wire φ0.5mm, copper-wire φ1mm, piano-wire φ0.3mm, soft-plastic φ2mm

AIR CUTTERS MR10
Length:124mm Weight:200g Grip size:φ36mm
Air consumption:105cm³/stroke Power:(approx.)580N
Air pressure:0.4~0.5MPa
Cutting capacity: steel-wire φ1mm, copper-wire φ1.6mm, piano-wire φ0.5mm, soft-plastic φ4mm, hard-plastic φ2.6mm

AIR CUTTERS MR20
Length:155mm Weight:340g Grip size:φ45mm
Air consumption:268cm³/stroke Power:(approx.)1,370N
Air pressure:0.5~0.6MPa
Cutting capacity: steel-wire φ2mm, copper-wire φ2.6mm, piano-wire φ1mm, soft-plastic φ7mm, hard-plastic φ5mm


AIR CUTTERS MR30A
Length:191mm Weight:520g Grip size:φ56mm
Air consumption:631cm³/stroke Power:(approx.)2,740N
Air pressure:0.5~0.6MPa
Cutting capacity: steel-wire φ2.8mm, copper-wire φ3.3mm, piano-wire φ1.2mm, soft-plastic φ10mm, hard-plastic φ6.5mm

AIR CUTTERS MR50AK
Length:237mm Weight:1,290g Grip size:φ75mm
Air consumption:1,285cm³/stroke Power:(approx.)4,700N
Air pressure:0.5~0.6MPa
Cutting capacity: steel-wire φ4.5mm, copper-wire φ5.5mm, piano-wire φ1.6mm, soft-plastic φ11mm, hard-plastic φ8mm

AIR CUTTERS MR50FK
Length:198mm Weight:1,170g Grip size:φ75mm
Air consumption:1,212cm³/stroke Power:(approx.)4,100N
Air pressure:0.5~0.6MPa
Cutting capacity: soft-plastic φ12mm, hard-plastic φ6.5mm

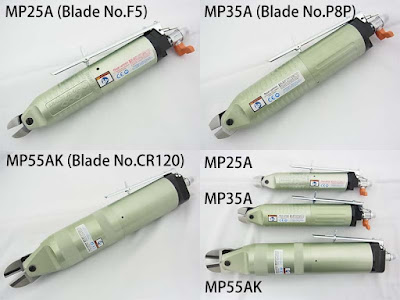

AIR CUTTERS MP25A
Length:242mm Weight:560g Grip size:φ45mm
Air consumption:459cm³/stroke Power:(approx.)1,960N
Air pressure:0.4~0.5MPa
Cutting capacity: steel-wire φ2mm, copper-wire φ2.6mm, piano-wire φ1mm, soft-plastic φ7mm, hard-plastic φ5mm


AIR CUTTERS MP35A
Length:283mm Weight:830g Grip size:φ56mm
Air consumption:1,146cm³/stroke Power:(approx.)4,410N
Air pressure:0.5~0.6MPa
Cutting capacity: steel-wire φ4mm, copper-wire φ4.8mm, piano-wire φ1.2mm, soft-plastic φ13mm, hard-plastic φ6.5mm

AIR CUTTERS MP55AK
Length:370mm Weight:2,000g Grip size:φ75mm
Air consumption:2,569cm³/stroke Power:(approx.)7,740N
Air pressure:0.5~0.6MPa
Cutting capacity: steel-wire φ6mm, copper-wire φ7mm, piano-wire φ2mm, soft-plastic φ11mm, hard-plastic φ8mm

Optional blades: Initial of the blade number corresponding to the cutting of
steel-wire is the “S,P,CR,EP”
copper-wire is the “S,CR,EP”
piano-wire is the “Z”
plastic is the “F,FD”

Special blades: Even a piece of any type of special blade can be designed and manufactured to meet your particular application. Samples of actual work pieces are required on inquiry for designing and quoting.
