Plastic Nippers

PLASTIC NIPPERS






Part number

  • 160S (high-plastic nippers / round type blade)
  • 160SF (high-plastic nippers / flat type blade)
  • 160SA (high-plastic nippers / angle type blade)
  • 160FW (high-plastic nippers / extra thin blade)
  • 66S (plastic nippers)
  • 99 / 99S / 99SF (heavy-duty plastic nippers)
  • 170S (angled plastic nippers)
  • WA1000F (compound action plastic nippers)
  • 68S (narrow nose plastic nippers)
  • PG20 (pin gate plastic nippers)
  • 2000EF / 23EF / 24EF / 25EF /26EF (end cutting plastic nippers)
  • 550SF (angle cutting plastic nippers)
  • L40 (long handle plastic nippers)
  • M11 / M12 (miniature plastic cutting nippers)








 Feature

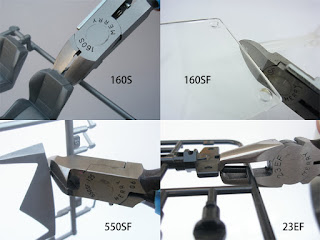

for nearly flush cutting of moulded plastic components from sprues.
with opening spring.

Cutting capacity:
[160S-125 / 160SF-125 / 160SA-125] φ3mm.
[160S-150 / 160SF-150 / 160SA-150] φ5mm.
[M11 / M12] φ3mm.
[160FW-125] φ2mm.
[160FW-150] φ4mm.
[66S-150] φ5mm.
[99-150 / 99S-150 / 99SF-150] φ8mm.
[99-175 / 99S-175 / 99SF-175] φ9mm.
[99-200 / 99S-200 / 99SF-200] φ10mm.
[170S-150] φ5mm.
[WA1000F] φ5mm.
[68S-125] φ2mm.
[PG20-125] φ1mm.
[2000EF / 23EF / 24EF / 25EF / 26EF] φ3mm.
[550SF-125] φ3mm.
[550SF-150] φ5mm.
[L40-190] φ5mm.
[M11 / M12] φ3mm.
