Plastik Pipe Cutters


PLASTIC PIPE CUTTERS (SNIP)




Part number

  • PIP19 (Standard type)
  • PIP20 (Heavy-duty type)
  • PIP7Z (Slim type)

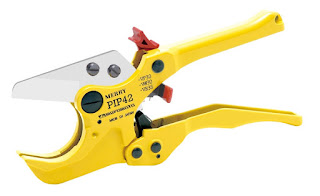

  • PIP42 (Easy operation type)



 Feature
One hand operation for cutting plastic pipes.
Possible to cut plastic surface raceway at any desired angle with an attachment installed. (for PIP19 /PIP42)
Blade can be locked with Stopper when off-work for security. (for PIP42)
Blade-opening by pushing Release Lever down. (for PIP42)

Cutting capacity:


[PIP19 /PIP42]φ42mm (Standard vinyl pipe VP30, Water pipe VW30, Electric wiring pipe VE36.)
[PIP7Z]φ26mm (Standard vinyl pipe VP20, Water pipe VW20, Electric wiring pipe VE22.)
[PIP20]φ63mm (Standard vinyl pipe VP50, Water pipe VW50, Electric wiring pipe VE54.)

Blade type:

[P18Z] for PIP19.
[P42] for PIP42.
[P7] for PIP7Z.
[P20] for PIP20.

Overall length:
[PIP19]217mm.
[PIP42]220mm.
[PIP7Z]185mm.
[PIP20]325mm.
