Square Air Cutters


SQUARE AIR CUTTERS



Here is a wide range of "NILE" air cutters to help you achieve higher productivity and remarkable cost saving in cutting, squeezing, pressing, bending and punching jobs for modern industries.
Equipped with different types of replaceable cutting blades, these air cutters can be versatile for various applications.
The square body has many holes for setting bolts to be mounted on any machines or stands.


  • MS3 / MS3G (minimum size)
  • MS5 / MS5G (extra small size)
  • MS10 / MS10G (small size)
  • MS20 / MS20G (medium size)
  • MS30 / MS30G (large size)
  • MSP20 / MSP20G (medium size) (heavy-duty type)
  • MSP30 / MSP30G (large size) (heavy-duty type)










View More Details




MS3 / MS3G

Length:(MS3)110mm :(MS3G)101mm
Weight:(MS3)100g :(MS3G)75g Grip size:□20mm
Air consumption:31cm³/stroke Power:(approx.)265N
Air pressure:0.4~0.5MPa
Cutting capacity: steel-wire φ0.4mm, copper-wire φ0.8mm, piano-wire φ0.3mm, soft-plastic φ1mm

MUROMOTO SQUARE AIR CUTTERS MS5 / MS5G
Length:(MS5)94mm :(MS5G)89mm
Weight:(MS5)160g :(MS5G)141g Grip size:□30mm
Air consumption:56cm³/stroke Power:(approx.)390N
Air pressure:0.4~0.5MPa
Cutting capacity: steel-wire φ0.5mm, copper-wire φ1mm, piano-wire φ0.3mm, soft-plastic φ2mm

MUROMOTO SQUARE AIR CUTTERS MS10 / MS10G
Length:(MS10)113mm :(MS10G)117mm
Weight:(MS10)260g :(MS10G)254g Grip size:□36mm
Air consumption:105cm³/stroke Power:(approx.)580N
Air pressure:0.4~0.5MPa
Cutting capacity: steel-wire φ1mm, copper-wire φ1.6mm, piano-wire φ0.5mm, soft-plastic φ4mm, hard-plastic φ2.6mm

MUROMOTO SQUARE AIR CUTTERS MS20 / MS20G
Length:(MS20)129mm :(MS20G)136mm
Weight:(MS20)430g :(MS20G)425g Grip size:□45mm
Air consumption:268cm³/stroke Power:(approx.)1,370N
Air pressure:0.5~0.6MPa
Cutting capacity: steel-wire φ2mm, copper-wire φ2.6mm, piano-wire φ1mm, soft-plastic φ7mm, hard-plastic φ5mm

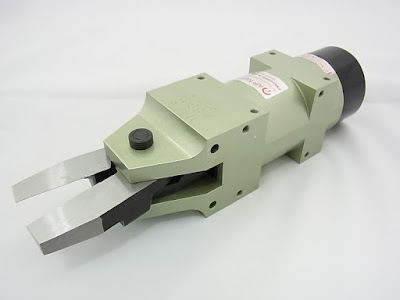

MUROMOTO SQUARE AIR CUTTERS MS30 / MS30G
Length:(MS30)170mm :(MS30G)177mm
Weight:(MS30)810g :(MS30G)788g Grip size:□56mm
Air consumption:631cm³/stroke Power:(approx.)2,740N
Air pressure:0.5~0.6MPa
Cutting capacity: steel-wire φ2.8mm, copper-wire φ3.3mm, piano-wire φ1.2mm, soft-plastic φ10mm, hard-plastic φ6.5mm

MUROMOTO SQUARE AIR CUTTERS MSP20 / MSP20G
Length:(MSP20)216mm :(MSP20G)223mm
Weight:(MSP20)650g :(MSP20G)648g Grip size:□45mm
Air consumption:459cm³/stroke Power:(approx.)1,960N
Air pressure:0.4~0.5MPa
Cutting capacity: steel-wire φ2mm, copper-wire φ2.6mm, piano-wire φ1mm, soft-plastic φ7mm, hard-plastic φ5mm

MUROMOTO SQUARE AIR CUTTERS MSP30 / MSP30G
Length:(MSP30)262mm :(MSP30G)269mm
Weight:(MSP30)1,220g :(MSP30G)1,115g Grip size:□56mm
Air consumption:1,146cm³/stroke Power:(approx.)4,410N
Air pressure:0.5~0.6MPa
Cutting capacity: steel-wire φ4mm, copper-wire φ4.8mm, piano-wire φ1.2mm, soft-plastic φ13mm, hard-plastic φ6.5mm


Optional blades: Initial of the blade number corresponding to the cutting of
steel-wire is the “S,P,CR,EP”
copper-wire is the “S,CR,EP”
piano-wire is the “Z”
plastic is the “F,FD”

Special blades: Even a piece of any type of special blade can be designed and manufactured to meet your particular application. Samples of actual work pieces are required on inquiry for designing and quoting.
